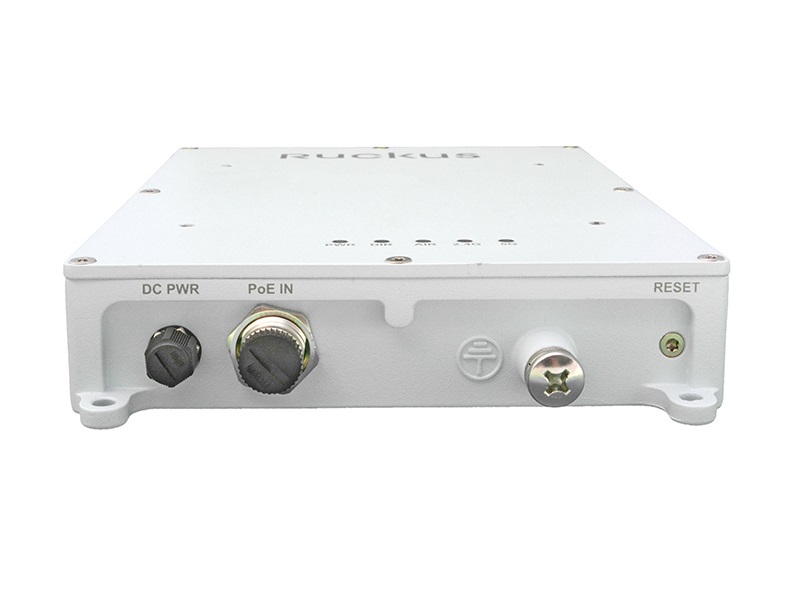

Точка доступа Ruckus E510 (901-E510-WW01)

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac Wave 2

Supported Channels

• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165

Supported Rates

• 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80, NSS = 1 to 2 for VHT80)
• 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps

Spatial Streams

• 2 SU-MIMO
• 2 MU-MIMO

MIMO

• 2x2 SU-MIMO
• 2x2 MU-MIMO

Channelization

20, 40, 80MHz

Security

• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS

Other Wi-Fi Features

• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr

RF

Antenna Type

• External BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides upto 64 unique antenna patterns

Antenna Gain (max)

• 2.4GHz: 2dBi
• 5GHz: 3dBi

Minimum Receive Sensitivity

-101dBm

Peak Transmit Power (aggregate across MIMO chains)

• 2.4GHz: 22dBm
• 5GHz: 22dBm

Frequency Bands

• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz

PERFORMANCE AND CAPACITY

Peak PHY Rates

• 2.4GHz: 300Mbps
• 5GHz: 867Mbps

SSID

• Up to 31 per AP

Client Capacity

Up to 512 clients per AP

RUCKUS RADIO MANAGEMENT

Wi-Fi Channel Management

• ChannelFly
• Background Scan Based

Antenna Optimization

• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC)

SmartCast Quality of Service

• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs

Client Density Management

• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization

Mobility

SmartRoam

Diagnostic Tools

• Spectrum Analysis
• SpeedFlex

NETWORKING

Controller Platform Support

• SmartZone
• ZoneDirector
• Standalone

Mesh

SmartMesh™ wireless meshing technology. Selfhealing Mesh

IP

 IPv4, IPv6

VLAN

• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based

802.1x

Authenticator & Supplicant

Policy Management Tools

• Application Visibility and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting

Tunnel

L2TP, GRE, Soft-GRE

PHYSICAL INTERFACES

Ethernet

1 x 1GbE port, with M12 connector

USB

1 USB 2.0 port, Type A

Trusted Platform Module (TPM)

HW capability for Secure Boot

PHYSICAL CHARACTERISTICS

Weight

900gm

Physical Size

• 21(L) x 14.2(W) x 3.3 (H) cm
• 8.3(L) x 5.6(W) x 1.3(H) in.

Ingress Protection

IP-67

Mounting

• Wall, Pole, Cabinet, DIN Rail and others
• Pole Mount Diameter 1” to 2.5”

Operating Humidity

Up to 95%, non-condensing

Operating Temperature

-40°C (-40°F) to 70°C (158°F)

POWER

802.3af (PoE)

12.35W

DC (12-48VDC)

13.88W

CERTIFICATIONS AND COMPLIANCE

Wi-Fi Alliance

• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage

Standards Compliance

• EN 60950-1 Safety
• EN 60950-22 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation
