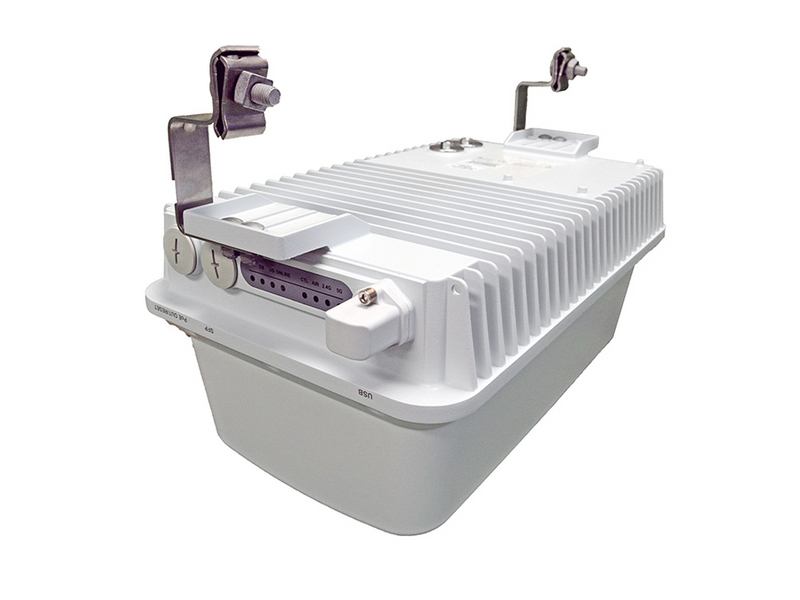

Точка доступа Ruckus T811-CM (901-T811-WW11)

Wi-Fi Standards

IEEE 802.11a/b/g/n/ac Wave 2

Supported Rates

• 802.11ac: 6.5 to 1733 Mbps
• 802.11n: 6.5 to 600Mbps
• 802.11a/g: 6 to 54 Mbps
• 802.11b: 1 to 11 Mbps

Supported Channels

• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165

MIMO

4x4

Spatial Streams

4 streams SU/MU

Channelization

20, 40, 80, 160MHz

Security

• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS

Other Wi-Fi Features

• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr

RF

Antenna Type

• BeamFlex+ adaptive antennas
• Polarization: 2 Vertical & 2 Horizontal

Antenna Gain (max)

3dBi for both 2.4GHz and 5GHz

Peak Transmit Power (aggregate across MIMO chains)

• 2.4GHz: 28dBm
• 5GHz: 30dBm

Minimum Receive Sensitivity

• 2.4GHz: -102dBm
• 5GHz: -96dBm

Frequency Bands

• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz

PERFORMANCE AND CAPACITY

Peak PHY Rates

2.4GHz: 600 Mbps

Client Capacity

Up to 512 clients per AP

SSID

Up to 32 per AP

RUCKUS RADIO MANAGEMENT

Antenna Optimization

• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC)

Wi-Fi Channel Management

• ChannelFly
• Background Scan Based

Client Density Management

• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization

Mobility

SmartRoam

Queuing and Scheduling

SmartCast

Diagnostic Tools

• Spectrum Analysis
• SpeedFlex

NETWORKING

Controller Platform Support

• SmartZone

IP

IPv4, IPv6

Mesh

SmartMesh™ wireless meshing technology. Selfhealing Mesh

VLAN

• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based

802.1x

Wired & wireless authenticator & Supplicant

Tunnel

RuckusGRE, softGRE

Policy Management Tools

• Application Visibility and Control
• Access Control Lists
• Device Fingerprinting

PHYSICAL INTERFACES

Ethernet

1 x 1GbE port PoE-out (802.3at), RJ-45

USB

1 USB 2.0 port, Type A

Fiber

SFP, 1Gbps, EPON, 1000BASE-lx

Cable Modem

Type F, DOCSIS 3.1

PHYSICAL CHARACTERISTICS

Physical Size

• 44.2 (L) x 24.98 (W) x 15.43 (H) cm
• 17.4 (L) x 9.84 (W) x 6.07 (H) in

Weight

7.15kg (15.73lbs)

Ingress Protection

IP-67. ASTM B117 (Salt Spray)

Mounting

Strand

Operating Temperature

-40ºC (-40ºF) to 65ºC (149ºF)

Operating Humidity

Up to 95%, non-condensing

POWER

AC Input (over Coax)

40V to 90V RMS 50/60Hz Quasi-Square Wave

Maximum Current Draw

• Max Current
• Draw: 1.75A @50V

Power Consumption

• Min: 56.7W
• Typical: 67.8W
• Max: 93.7W

CERTIFICATIONS AND COMPLIANCE

Wi-Fi Alliance

• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage

Standards Compliance

• EN 60950-1 Safety
• EN 60950-22 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation

OTHER RADIO TECHNOLOGIES

GPS

GPS, GLONASS
